Spohn Performance's
front control arms set a new, higher standard of performance and
quality. When we designed our a-arms, we had two goals in mind. One
was to provide the performance capabilities needed for the toughest race
tracks, the second was to provide the strength and durability required for
the demands of a daily driven vehicle. We're proud to say that we have
accomplished both. If you are looking for the "cheapest"
a-arms, we don't have them. If you are looking for the best front
suspension components for your
S-10, you just found them.

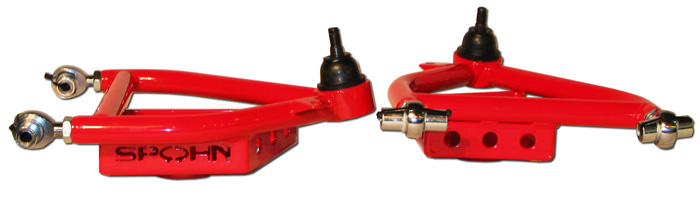

Spohn front control
arms are a true "A" arm rather than a "V" arm. This
provides maximum rigidity and equalizes forces delivered in to the
frame. Spohn control arms are gusseted in critical areas to ensure
that a weld never breaks. They decrease overall
weight, and more importantly - "unsprung" weight. These
a-arms are equipped with a spring "box", not a
"perch". This provides for maximum strength and rigidity. Our
spring box has a stepped spring seat that provides for proper seating of
the spring around it's circumference. This allows the spring to spread
it's load across the entire spring seat, not at one small area as other
designs on the market do.
Build
Specifications:
 | 1.25" x
.120" wall seamless DOM tubing
| Ball joint cups
are CNC machined from 2.75" o.d. x .375" wall seamless
mechanical tubing
| CNC cut and formed 7 gauge spring boxes with stepped spring seat
| Moog
"Problem Solver" greasable ball joints (installed)
| QA1 3/4" chrome-moly spherical rod ends with
Teflon®/Kevlar® self lubricating race
| Rod ends allow additional alignment adjustability
| CNC machined through sleeve and zinc coated spacers keep rod
ends perfectly centered inside of the mounting brackets
| | Formed
.125" sway bar end link mounts
| Durable and brilliant powder coated finish
| Fully assembled and ready to install
| STRONGER, yet
LIGHTER than stock! |
| | | | | | | | |
These Part #763 a-arms are equipped with spring boxes to mount the
stock type coil spring.
Now Available: The ultimate in bullet-proof
lightweight strength, 100% TIG welded 4130 chrome moly
construction! Same as above, but constructed entirely from 1.25" x
.095" 4130N chrome moly tubing. Make your choice below.
Priced per pair -- Qty. 1 = 1 Pair
|
