These
front control arms set a new, higher standard of performance and quality. When
we designed our a-arms, we had two goals in mind. One was to provide the
performance capabilities needed for the toughest race tracks, the second
was to provide the strength and durability required for the demands
of a daily driven vehicle. We're proud to say that we have accomplished
both. If you are looking for the "cheapest" a-arms, we don't
have them. If you are looking for the best front suspension components for
your
S-10, you just found them.

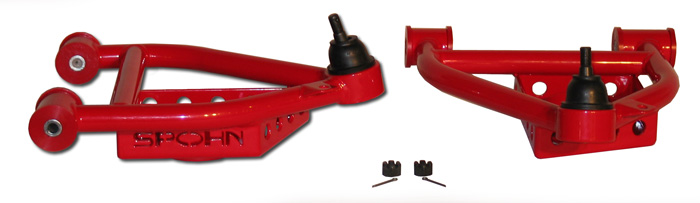

Our front control
arms are a true "A" arm rather than a "V" arm. This
provides maximum rigidity and equalizes forces delivered in to the frame.
control arms are gusseted in critical areas to ensure that a weld never
breaks. They decrease overall weight, and more
importantly - "unsprung" weight. These a-arms are
equipped with a spring "box", not a "perch". This
provides for maximum strength and rigidity. Our spring box has a stepped
spring seat that provides for proper seating of the spring around it's
circumference. This allows the spring to spread it's load across the
entire spring seat, not at one small area as other designs on the market
do.
Build
Specifications:
 | 1.25" x
.120" wall seamless DOM tubing
| Ball joint cups
are CNC machined from 2.75" o.d. x .375" wall seamless
mechanical tubing
| CNC cut and formed 7 gauge spring boxes with stepped spring seat
| Moog
"Problem Solver" greasable ball joints (installed)
| Fluted and
greasable polyurethane bushings (custom designed by Spohn)
| Formed .125"
sway bar end link mounts
| Durable and brilliant powder coated finish
| Fully assembled and ready to install
| STRONGER, yet
LIGHTER than stock! |
| | | | | | | |
These Part #762 a-arms are equipped with spring boxes to mount the
stock type coil spring.
NEW! - Now available with CNC machined Delrin
bushings. A true heavy duty Delrin bushing CNC machined from 2" o.d.
Delrin with a minimum .4375" wall thickness!
Now Available: The ultimate in bullet-proof
lightweight strength, 100% TIG welded 4130 chrome moly construction!
Same as above, but constructed entirely from 1.25" x .095" 4130N
chrome moly tubing. Make your choice below.
Priced per pair -- Qty. 1 = 1 Pair
|
S-10
Front Lower Control Arms $395.00-UP
