Here's a dress-up product that we have
brought back! This chrome steel cover installs over
your ugly AC compressor to brighten up this area of your
motor compartment. All hardware and instructions are
included. No need to break open the AC lines to
install.
Read instructions below!
AC COMPRESSOR CHROME COVER
INSTALLATION INSTRUCTIONS
-
Disconnect negative
battery cable
-
Disconnect electrical
wiring plugs from compressor
Note! It is NOT necessary to disconnect the AC
lines from the compressor
-
Remove belt from
compressor pulley.
-
Loosen remove bolts that
fasten compressor to mounting bracket
-
Pre-assemble the chrome
cover by installing the 2 supplied socket head cap
screws into the threaded rod located at the bottom of
the cover. Start screws into the rods one or two
turns.
-
Remove the compressor
from mounting bracket. Slide the chrome cover onto
the compressor from the front making sure that the notch
on the cover is in alignment with the tab on the outside
of the compressor. Tighten the cap screws securely
using a 1/8" allen wrench.
-
Reinstall compressor onto
the mounting brackets.
-
Install wiring plugs back
on compressor.
-
Reconnect the negative
battery cable.

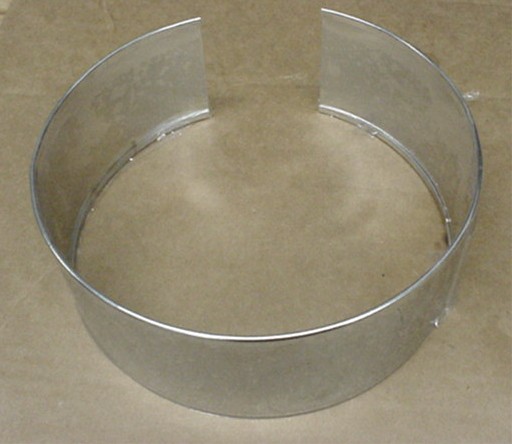

Chrome
AC Compressor Cover
