Fits 82-03 S-10 2WD
Easy
Bolt-In Installation
Minimal modifications to be made. Remove the existing shocks and
springs and the QA1 Pro Coil System bolts right in.
Specially
Designed Conical Springs
These springs are designed so that the lower end sits on
the coil-over shock's adjustable spring seat and the upper
end sits in the original spring pocket in the frame. This
allows for the use of a longer and lighter spring for more
stored energy, offering increased weight transfer. Greater
durability is also achieved by locating the spring pressure in
the frame and not on a single stud.
Ride
Height Adjustable - Threaded aluminum body allows ride
height adjustment.

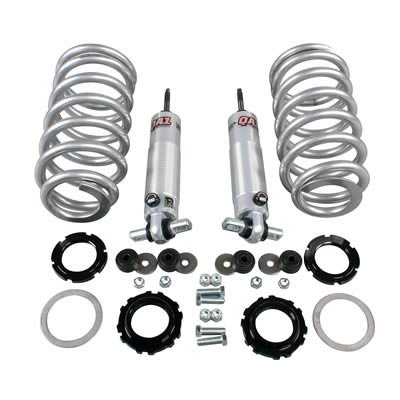

The
Pro Coil System includes:
(2)
Proma Star 12 way single adjustable coil-over shocks
(2) Conical springs
All mounting hardware
Spring
Rates:
250#:
1500-1700 pounds front end weight
350#: 1701-1900 pounds front end weight
450#: 1901-2100 pounds front end weight
550#: 2101-2300 pounds front end weight
We
recommend getting the the optional spanner wrench and torrington
bearing kit to make adjustments easier. This kit will give
you all of the tools you need to make ride height adjustments,
along with the thrust washers and bearings to place on to the
coil spring base to prevent spring bind and make for easy ride
height adjustments.
